Product Details:
|
| Capacity: | 1000L | Size: | 1200*1000*1150mm |
|---|---|---|---|
| Material: | HDPE+METAL | Type: | Tank |
| Usage: | Water | Product Name: | IBC Tank |
| Color: | White | Shape: | Square |
| Application: | Chemical Drum | Feature: | Strong |
| Grade: | Food Grade Container | Function: | Package Industrial Liquid |
| Highlight: | chemical tote container 1200x1000mm,1000 litre chemical containers 1200x1000mm,SIDUN 1000 litre chemical containers |
||

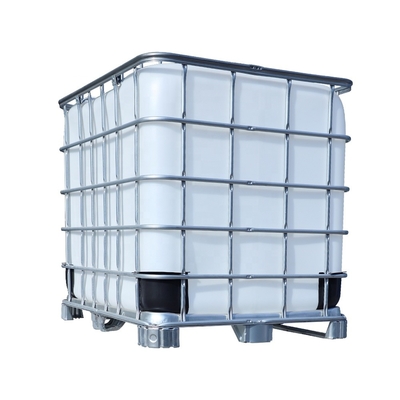

1000L 1 Ton IBC HDPE Chemical Tank With Metal Frameplastic Barrel Container
Specification
| Overall dimension: | L1200*W1000*H1150mm(±5mm) |
| Max Allowable Weight: | 2013 kg |
| Tare Weight: | 56±2kg |
| Allowable Stacking Weight: | 4056kg |
| Material of inner Receptacle | HDPE |
| Material of outer Casing: | Galvanized steel DCD51D |
| Material of pallet: | Galvanized steel DC53D |
| Material of seal: | EPDM, FKM, Nitrile, PE |
| Valve and Material: | Ball Valve DN50 or Butterfly Valve DN 50 |
| Stacking Test Weight: | 4056kg |
| Dropping Test Height: | 1.9m |
| Hydraulic Test pressure: | 100kpa |
| Vibration Test: Amplitude: | 25±5%mm, Time Duration:1 hour |
Details
About stacking
Fill the container with water at a nominal capacity of 98%, the loading value on the container shall be 4600kg. The maximum allowable gross weight, and maintain for 24 hours at room temperature, with no fall, no deformation, and no leakage.
About load bearing
IBC barrels are equipped with iron frames to increase the load-bearing capacity. IBC tanks cubic, its clearance is very small after stacking which can save transportation
and storage space. 20%6 unusable space remained after stacking of round barrels.
About capacity
IBC filling port 150mm to realize quick and high flow rate filling, and 1000L can be filled or drained for one time.
200L round barrel's filling port is normally less than 70mm, the flow rate is just 1/5 of the IBC barrel.1000L
the volume will be respectively filled or drained 5 times.
Feature:
IBC Chemical Tanks are increasingly versatile, durable, and long service lasting intermediate bulk containers. Ultratainers are available in 220 gallons to 330-gallon capacities and rated to 1.9 SG, the equivalent of 15.2 lbs./gal. They are roto-molded from industrial-strength HDPE resin and certified per FDA, ANSI / NSF 61, and Title 49 CFR requirements. They are qualified per UN/DOT regulations for Packing Group II and III materials, making Ultratainers fully certified for the reusable handling of dense and corrosive chemicals, hazardous and non-hazardous, potable, and food-grade bulk cargo. Ultratainer IBCs report one of the longest and most respected industry service lives of IBC tanks. They are heavily utilized across industries and users from manufacturers, producers, distributors, wholesalers, suppliers, and end-users.
These multipurpose, reusable, and fully portable totes are completely molded from high-density polyethylene into a single unit. The cylindrical storage tank promotes tank strength and stability, increases tank pressure capacity, and promotes cleaning and flushing of tank contents by providing a uniform sidewall. The square frame removes the handling difficulties and packaging inconsistencies of a cylindrical shape by retaining the cubical design of IBCs. This cubical shape is significantly easier to maneuver, ship, stack, and store. The square frame extends above the tank’s top ports to function as a top protector against damages.
Choose us
1: Advantages in quality control, price, and delivery time.
2: Various logos can be printed on both sides of the glass bottle.
3: we can pride samples according to your demand.
4: OEM/ODM can be accepted.
|
Quantity(Pieces)
|
1 - 1
|
2 - 1000
|
>1000
|
|
Est. Time(days)
|
12
|
18
|
To be negotiated
|
Foshan Sidun Packaging Products Co., Ltd. was founded in 2008, located in Foshan, Guangdong, China. Sidun Packaging is a leading high-tech enterprise specialized in manufacturing various plastic products, such as plastic bottles, plastic buckets, plastic cans, PP bottles, HDPE bottles, PTFE bottles, fluorinated bottles, IBC tanks, IBC fitting, storage containers, and so on
Our products are widely used in the food industry, chemical industry, resin industry, and daily chemical industry. We can provide quality products, enthusiastic services, and OEM/ODM. We also obtain unanimous approval from the national and international markets. We sincerely hope to establish long-term business relationships with you and welcome your visit.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
